HHP SERIES

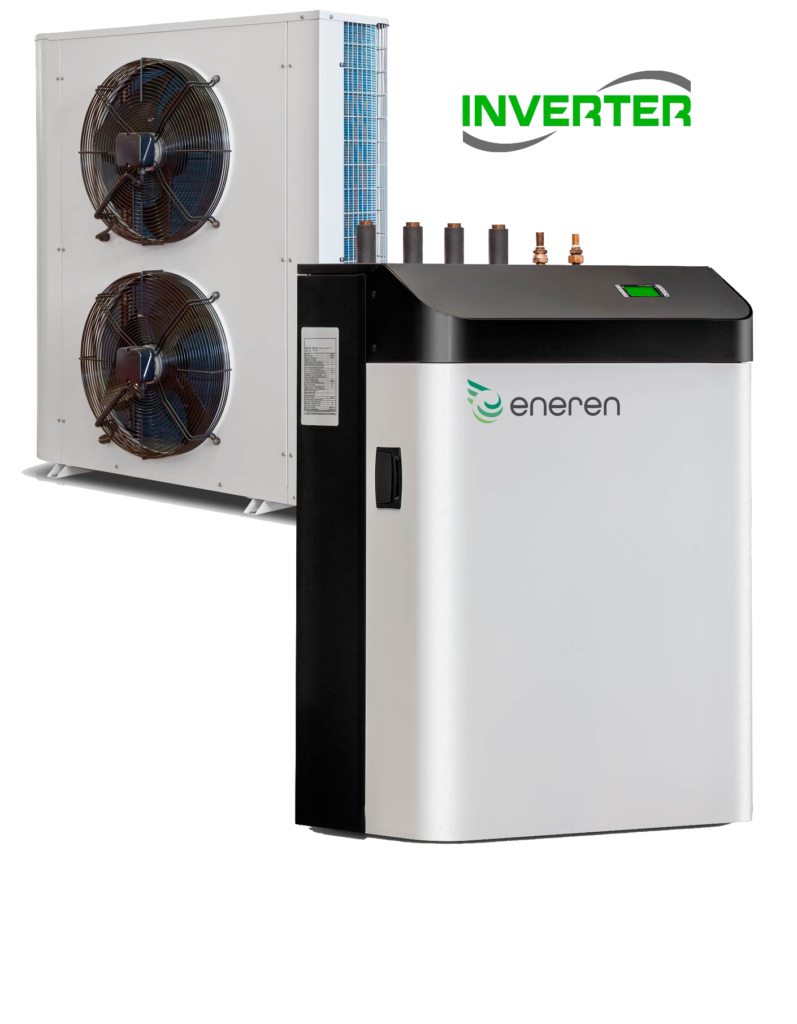

HHP SERIES FULL INVERTER MULTIFUNCTION SPLIT UNIT 20-50 kW
HHP is a versatile split type heat pump, energy-efficient thanks to the use of BLDC inverter digital scroll compressors. It is able to fully meet heating, cooling and domestic hot water production requirements. It operates with outdoor temperatures down to -20 °C and produces hot water up to 65 °C, guaranteeing the highest levels of energy efficiency.
Its small size and compact design make HHP suitable for installation in several environments.
- Villas
- Apartment buildings
- Stores
- Factories
Full configurability
The outdoor remote unit has been designed to best adapt to the architectural features of the building and can also be positioned indoors; it can be configured with both horizontal and vertical or ductable airflow.
Adaptability and advanced design
HHP is able to work with outdoor temperatures down to -20°C and to produce hot water up to 65°C. It can be completely controlled remotely, via the Enerweb system for system supervision from any web device and via the Smart Grid Ready system for checking own-consumption from photovoltaics and managing auxiliary generators.
Technical specifications
BLDC INVERTER SCROLL COMPRESSOR
The high-efficiency BLDC inverter scroll compressor allows the HHP pump to produce hot water up to 65°C and guarantees operating efficiency in all conditions of use.
DOUBLE EEV
The electronically controlled double expansion valve (EEV) maximizes HHP performance under any temperature condition, stabilizes and optimizes operation, regardless of the length of the refrigerant line.
MODULATING FLOW CONTROL
Electronic pumps and modulating valves, installed inside the unit, are essentially important to ensure flow rate control at constant temperature or constant delta T. Thanks to their control microprocessor, they are also able to adapt to every system need.
SUPERVISION AND ACCESSIBILITY
The standard graphic panel can be controlled in a simple and intuitive way, either directly or remotely, thanks to its connection, via the Modbus RS485 port, to Building Management systems, such as the Enerweb system supplied on request.
LOW NOISE
Hibox soundproofing of the compressor via a dedicated sound jacket and box, the oversized EC fans with 50% rotation speed and the soundproofing front grille guarantee the highest level of acoustic comfort.
