HVE-HXE SERIES
HVE-HXE SERIES FULL INVERTER MULTI-FUNCTIONAL MULTIPURPOSE UNITS 6-17 kW
HVE and HXE are adaptable and highly energy efficient monobloc heat pumps, thanks to the use of BLDC digital scroll inverter compressors. They are able to completely satisfy the needs for heating, cooling and for the production of domestic hot water; they operate with outdoor temperature down to -25 °C and HVE produces hot water up to 65 °C , while HXE can produce it up to 75 °C.
Available in three different versions:
- M for 2-pipe systems with domestic hot water, in total recovery
- P for 4-pipe systems, to satisfy heating and cooling needs at the same time, in total
recovery - H for 2-pipe systems with domestic hot water
- Villas
- Apartment buildings
- Offices
- Commercial Buildings
Total heat recovery
Thanks to the hot side dedicated heat exchanger, they satisfy the thermal and sanitary needs of commercial 4 pipe systems, without reversing the refrigerant cycle at each heating and cooling request.
Regulation and remote control
The control software allows you to perform all the necessary adjustments to maximize efficiency and configurability to different types of systems. The unit interfaces with any communication language for the remote control of system management and operation.
Operation

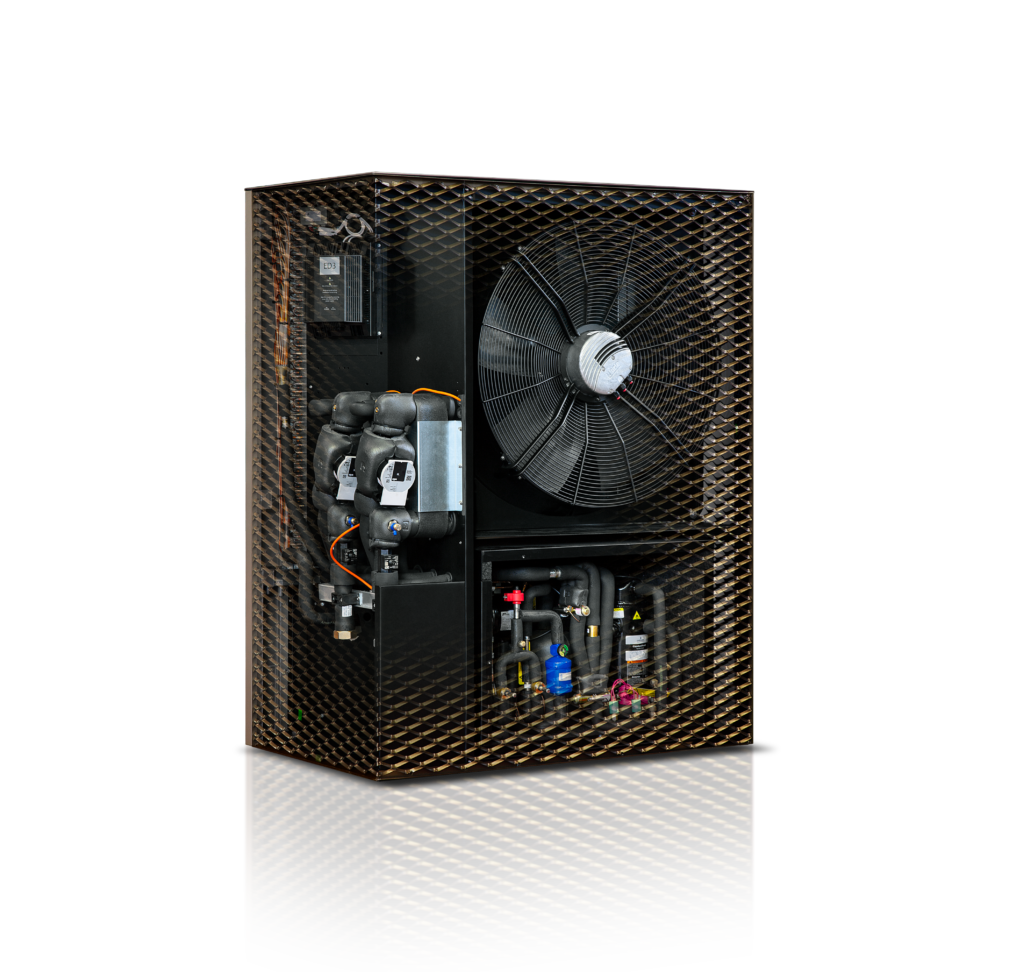

HVE-HXE heat pump technology.
Technical specifications
BLDC inverter scroll compressor
The BLDC inverter scroll compressor, with very high efficiency, allows HVE-HXE to produce hot water up to 65 °C and up to 75 ° and guarantee a high performance in all conditions of use.
WIDER PITCH FINNED COIL
The coil has a wider fin pitch and is applied a hydrophilic coating, which prevents the formation of surface condensation with a resulting reduction in the number of defrosting cycles by up to 30%.
MODULATING FLOW CONTROL
Electronic pumps and modulating valves, installed inside the unit, are essentially important to ensure flow rate control at constant temperature or constant delta T. Thanks to their control microprocessor, they are also able to adapt to every system need.
LOW NOISE
Hibox soundproofing of the compressor via a dedicated sound jacket and box, the oversized EC fans with 50% rotation speed and the soundproofing front grille guarantee the highest level of acoustic comfort.
