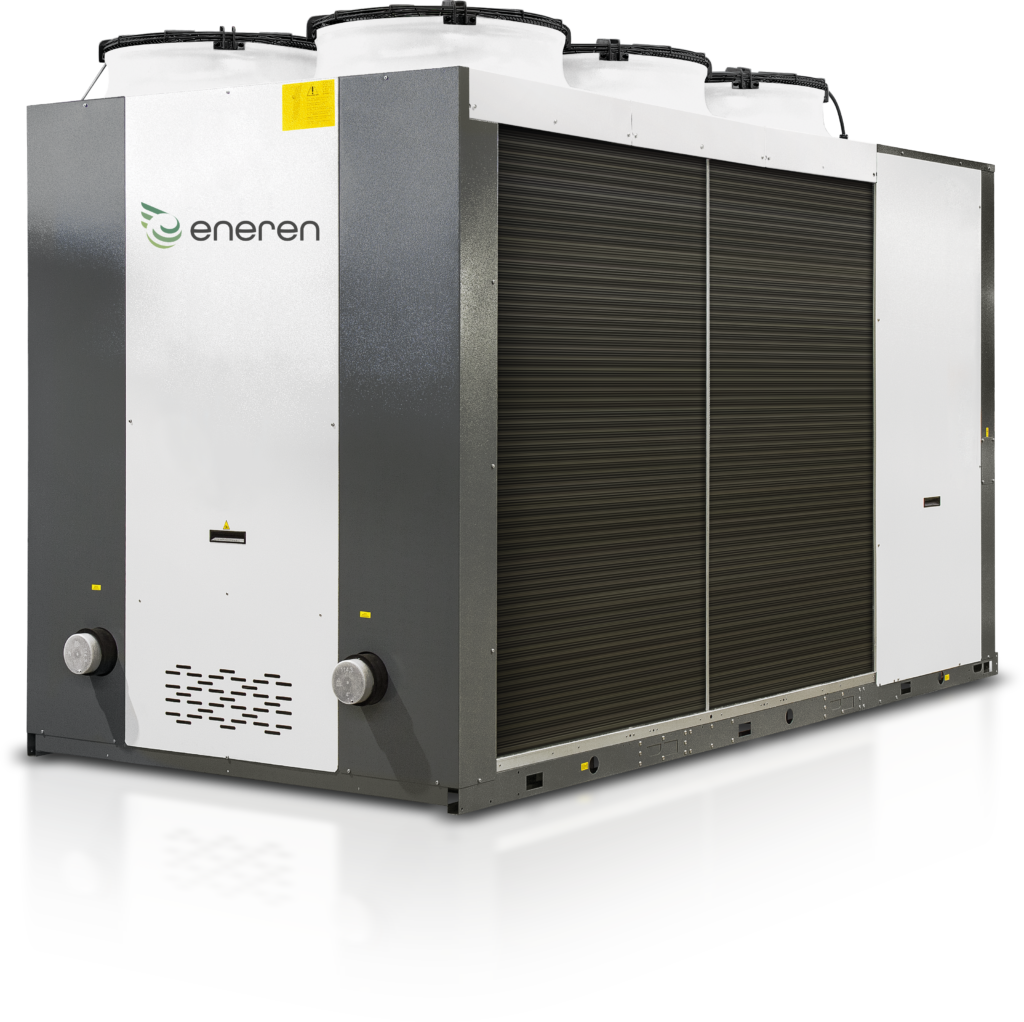

EPS SERIES
EPS REVERSIBLE SERIES 50-400 kW
EPS is an air-water heat pump with multiscroll compressors. It is able to fully meet heating, cooling and domestic hot water production requirements.
Available in three versions:
H heat pump with reversible refrigeration circuit
C chilling-only chiller
F Free-cooling chiller
- Multi-residential houses
- Stores
- Factories
Maximum efficiency at partial loads
EPS features a multiscroll solution with single or dual refrigeration circuit options. The use of an electronic expansion valve, oversized plate heat exchangers, and modulation of water flow rates make EPS efficient in all conditions of use, including at partial loads.
Extreme modulation
Thanks to the possibility of installing the pumping groups inside the unit, the hydraulic flow can be modulated to maximize the system efficiency. The use of EC electronic fans allows complete modulation to be managed according to energy and acoustic requirements.
Operation
EPS heat pump technology.
Technical specifications
EFFICIENCY PACK
EPS is equipped with high efficiency scroll compressors, and can be designed with single or double refrigerant circuit, improving efficiency at partial loads or operating redundancy.
CHOICE OF REFRIGERANT FLUID
EPS can be equipped with standard R410A refrigerant, or with the innovative low environmental impact R454B for maximum environmental sustainability. The use of the A2L ready kit consisting of refrigerant leak sensors and overpressure fans for the electrical control panel makes EPS safe even when slightly flammable refrigerants classified as A2L are used.
EEV
The electronically controlled expansion valve (EEV) maximises EPS performance under any temperature condition, at both source and user end, to ensure consistent efficiency and versatility.
MAXIMISED SOUNDPROOFING
The use of panels to completely enclose the refrigerator compartment, the quality of the soundproofing materials used and the use of dedicated anti-vibration mounts to support the compressors make of EPS an ultra-low noise heat pump.
